OD-ECOLINE (Horizontal Lifeline System)

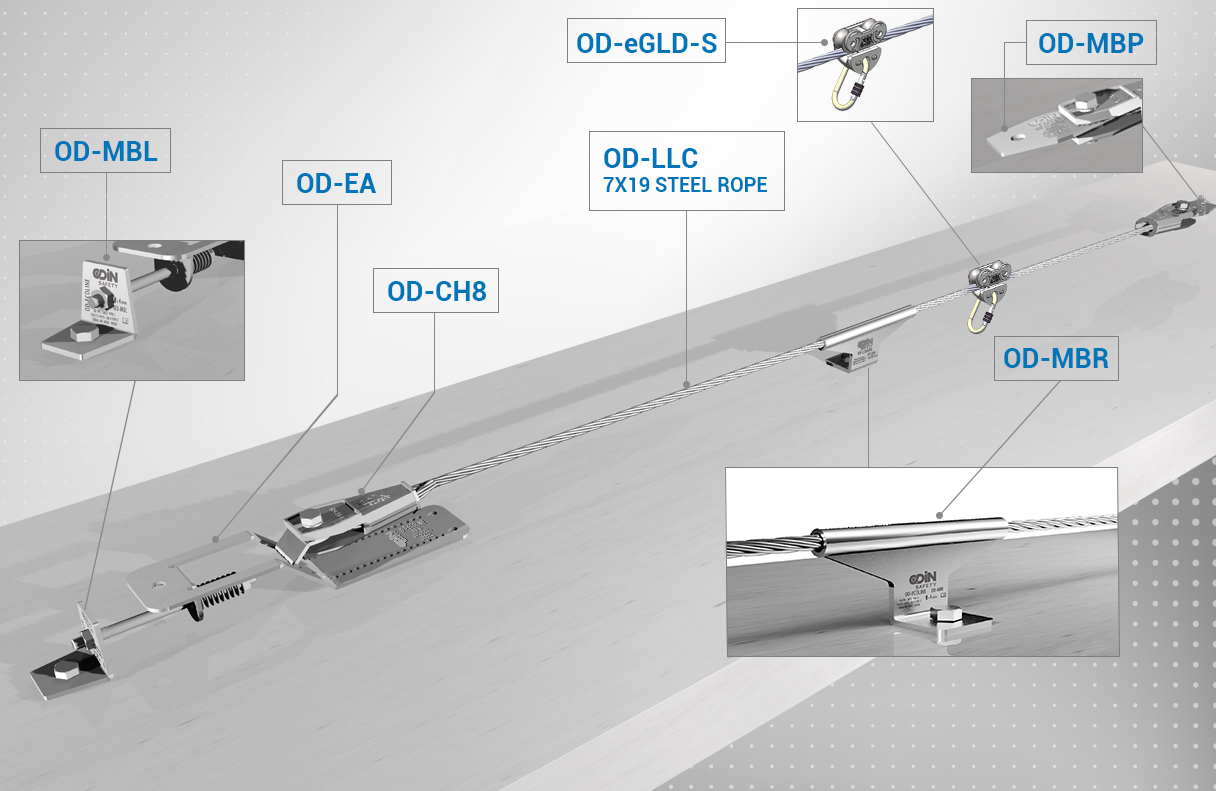

OD ECOLINE final EN 03 1
eGLD C Type Glider
eGLD S Pulley Troley Glider
OD CH8
OD EA
OD ECOLINE kare 02 web 1
OD ECOLINE final sade 02 kare web 2
OD ECOLINE 04 scaled
12 FINAL WEB 1
OD MBL
OD MBO
OD MBP
OD ECOLINE final EN 03
Data Sheet
User Guide

About OD-ECOLINE

It is the horizontal lifeline system with stainless steel components.

The distance between the two anchors is at most 20 meters. With this feature, it requires the least intervention to the structure to be assembled. It also offers an economical solution to its users.

  • OD-ECOLINE is produced, tested, and certified with EN 795: 2012 Type C and CEN / TS 16415: 2013 standards.
  • OD-ECOLINE is suitable for 4 people to work at the same time.
  • OD-ECOLINE is produced from 2 meters to desired meters.
  • OD-ECOLINE allows continuous passage on the line with the specially designed OD-eGLD S and OD-eGLD C sliders that prevent any deformation caused by friction on the lifeline rope.
  • OD-ECOLINE provides maximum safety in areas where there is a risk of explosion with its non-sparking feature.

Certification

EN795:2012 TYPE C
CEN TS 16415:2013

Maximum No of Users

Maksimum 4 Kullanıcı

Maximum Distance

Maximum Distance 20 meter

Force Directions

Lateral/Axial

Installation Substructure

Steel
Ripped Ceiling / Hollow Core
Trapezoidal Sheeting
Lightweight Concrete
Wood
Seams Roofs
Bituman / Plastic Membrane
Concrete
Sandwich
Profile Roofs
On Vehicle
